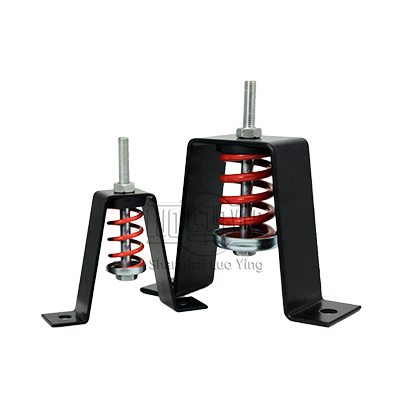

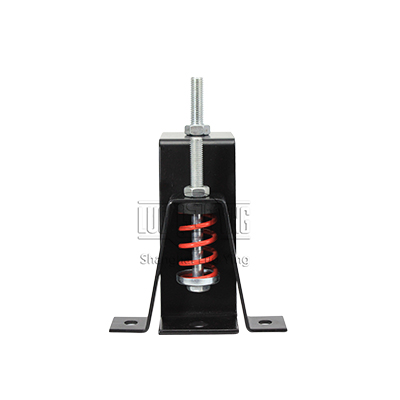

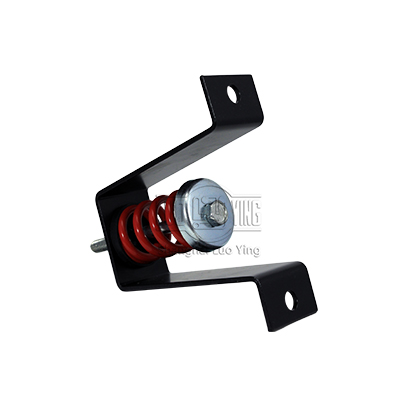

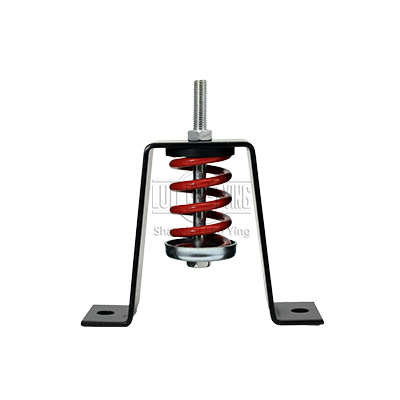

V hanger, suspension shock absorber
In suspension shock absorber simplest form, shock absorbers are hydraulic (oil) pump like devices that help to control the impact and rebound movement of vehicle's(or other equipment) springs and suspension. Along with smoothening out bumps and vibrations, the key role of the shock absorber is to ensure that the equipment's tyres remain in contact with the road surface at all times, which ensures the safest control and braking response from your equipment.
- [Name]: Suspension Shock Absorber
- [PN]: 0.6-2.5Mpa
- [Specification]: According to your request
- [Function]: Absorbing shock, movement
Description
In suspension shock absorber simplest form, shock absorbers are hydraulic (oil) pump like devices that help to control the impact and rebound movement of vehicle's(or other equipment) springs and suspension. Along with smoothening out bumps and vibrations, the key role of the shock absorber is to ensure that the equipment's tyres remain in contact with the road surface at all times, which ensures the safest control and braking response from your equipment.
Features
1) High-speed Production
(2) Professional in auto parts area
(3) Long-service life
(4) Excellent quality
(5) Flexile and convenient logistic service
Specification
| Type | Load Range N | Natural Frequency of Vibration Hz | Distortion Range mm |
| HQ-30 | 20-30 | 4.8-2.8 | 11-30 |
| HQ-50 | 30-50 | 4.5-3.2 | 12-25 |
| HQ-80 | 50-80 | 4.9-3.5 | 10-20 |
| HQ-140 | 80-40 | 4.7-3.5 | 10-22 |
| HQ-200 | 140-200 | 4.6-3.3 | 12-23 |
| HQ-240 | 200-240 | 4.7-3.3 | 12-24 |
| HQ-300 | 240-300 | 4.7-3.2 | 13-25 |
| HQ-350 | 300-350 | 4.8-3.2 | 13-25 |
| HQ-400 | 350-400 | 4.8-3.3 | 13-25 |
| HQA-15 | 8-15 | 4.8-3.3 | 11-22 |
| HQA-30 | 15-30 | 4.2-3 | 13-25 |
| HQA-40 | 30-40 | 3.8-2.7 | 17-30 |
| HQA-60 | 40-60 | 3.5-2.5 | 20-30 |
| HQA-80 | 60-80 | 3.5-2.5 | 19-36 |
| HQA-120 | 80-120 | 3.5-2.7 | 19-36 |
| HQA-160 | 120-160 | 3.6-2.7 | 20-30 |
| HQA-180 | 160-180 | 3.6-2.7 | 20-32 |
| HQA-200 | 180-200 | 3.9-2.6 | 20-33 |
| Type | Load Range N | Axial Rigidity N/mm | Natural Frequency of Vibration Hz | Distortion Range mm |
| XHS-5 | 30-80 | 3.2 | 3.0-5.0 | 9.5-25 |
| XHS-10 | 80-170 | 7.5 | 3.0-4.8 | 10.5-23 |
| XHS-20 | 130-260 | 11 | 3.0-4.5 | 12-23 |
| XHS-30 | 190-390 | 11.5 | 2.5-4.0 | 16.5-34 |
| XHS-40 | 250-530 | 14 | 2.6-3.7 | 18-38 |
| XHS-60 | 400-800 | 21 | 2.6-3.6 | 19-38 |
| XHS-80 | 550-1050 | 32 | 2.7-3.8 | 17-33 |
| XHS-100 | 750-1500 | 40 | 2.6-3.6 | 19-38 |
| XHS-150 | 1000-2000 | 45 | 2.3-3.3 | 23-45 |
| XHS-200 | 1300-2650 | 58 | 2.3-3.3 | 23-46 |
| XHS-250 | 1700-3100 | 56 | 2.9-2.1 | 30-55 |
| XHS-320 | 2310-4160 | 77 | 2.9-2.1 | 30-54 |
| XHS-500 | 3000-6800 | 200 | 4.0-2.6 | 15-35 |
| XHS-700 | 5500-10000 | 535 | 4.5-3.4 | 12-20 |
| V-5 | 30-80 | 3.2 | 3.0-3.5 | 9.5-25 |
| V-10 | 80-170 | 7.5 | 3.0-4.8 | 10.5-23 |
| V-20 | 130-260 | 11 | 3.0-4.5 | 12-23 |
| V-30 | 190-390 | 11.5 | 2.5-4.0 | 16.5-34 |
| V-40 | 250-530 | 14 | 2.6-3.7 | 18-38 |
| V-60 | 400-800 | 21 | 2.6-3.6 | 19-38 |
| V-80 | 550-1050 | 32 | 2.7-3.8 | 17-33 |
| V-100 | 750-1500 | 40 | 2.6-3.6 | 19-38 |
| V-150 | 1000-2000 | 45 | 2.3-3.3 | 23-45 |
| V-200 | 1300-2650 | 58 | 2.3-3.3 | 23-46 |
| V-250 | 1700-3100 | 56 | 2.9-2.1 | 30-55 |
| V-320 | 2310-4160 | 77 | 2.9-2.1 | 30-54 |
| V-500 | 3000-6800 | 200 | 4.0-2.6 | 15-35 |
| V-700 | 5500-10000 | 535 | 4.5-3.4 | 12-20 |
