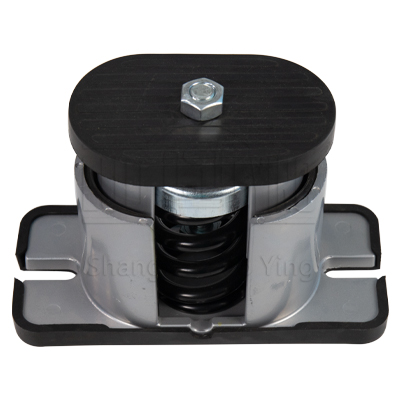

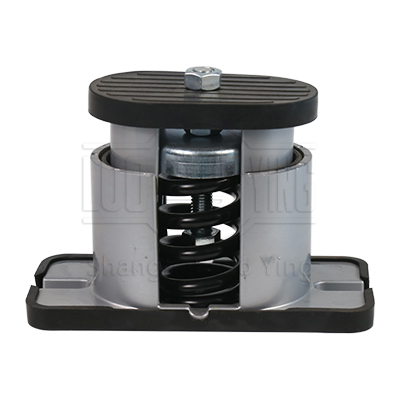

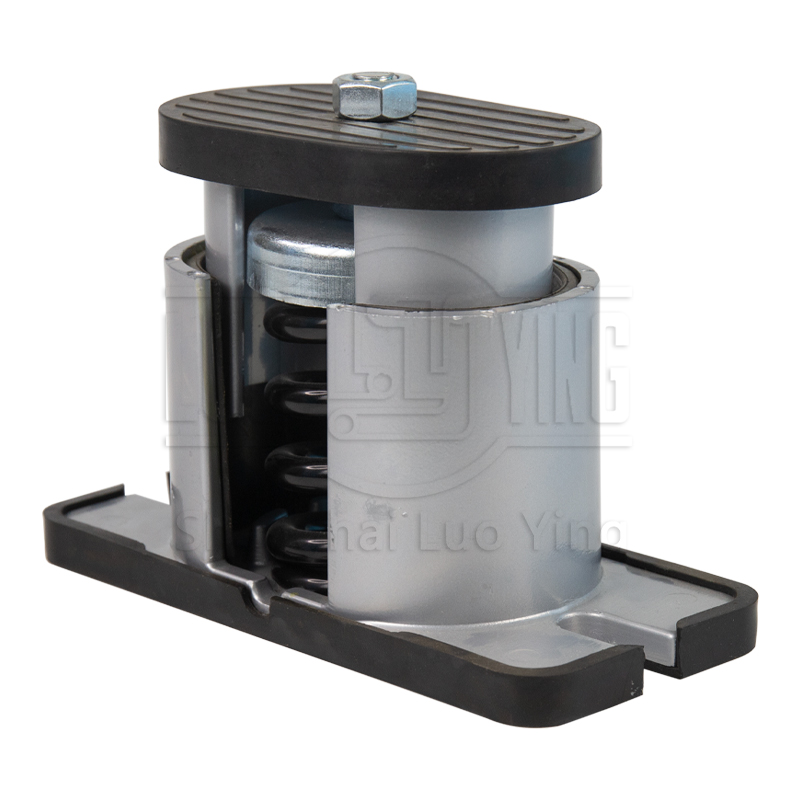

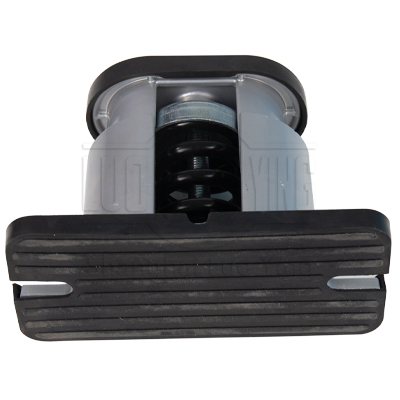

JB type damping spring vibration isolator
JB Series Spring-Flex Isolators are cast aluminum-housed, adjustable spring isolators with telescoping top and bottom sections separated by resilient elastomeric inserts to limit horizontal motion. A non-skid elastomeric pad is bonded to the base plate, eliminating the need for bolting. They are available in four mounting styles; style CAL-E (positioning bolt and nut), CAL-H (flat top plate), CAL-P (positioning pin), CAL-T (non-skid, ribbed elastomeric pads bonded to the top).
- 【Product Name】：JB type damping spring vibration isolator
- 【Product Brand】：Luo Ying
- 【Product Model】：JB-020-S~JB-1000-L
- 【Shock absorption level】：Class A
- 【Applicable environment】：Construction, water supply and drainage, light and heavy industry, refrigeration, sanitation, plumbing, fire fighting, electric power, etc;
- 【Product Features】：Oxidation resistance, excellent corrosion resistance, good shockproof effect, long flexural life.
Description
JB Series Spring-Flex Isolators are cast aluminum-housed, adjustable spring isolators with telescoping top and bottom sections separated by resilient elastomeric inserts to limit horizontal motion. A non-skid elastomeric pad is bonded to the base plate, eliminating the need for bolting. They are available in four mounting styles; style CAL-E (positioning bolt and nut), CAL-H (flat top plate), CAL-P (positioning pin), CAL-T (non-skid, ribbed elastomeric pads bonded to the top).
The aluminum construction makes the isolators ideal for corrosive environments. They are available in 1″ and 2″ deflections for loads from 50 to 7,140 pounds.
Vibration and instability can shorten the life of any equipment, as well as cause unsuitable noise disturbances. spring mount vibration isolators are designed to diminish these factors. We offer a broad range of spring isolation mountings that will limit the transmission of vibration, impact and noise over a variety of applications – from engine generator sets and small fans to heavy duty HVAC equipment and industrial machinery.
Features
Features & Benefits
Several mounting options with or without bolts permit superior versatility over a wide range of applications
Cast aluminum is corrosion resistant and offers exceptional durability and weather resistance
Internal or external leveling permits installation anywhere regardless of accessibility or the location of bolts in the machine base or foundation
Telescoping housing provides lateral resistance
Color-coded springs provide easy identification from installation to inspection
Powder-coated finish on the springs offers improved corrosion resistance
Can be used in chemical applications where the chemical in use is not reactive to aluminum, but may be reactive to cast iron or steel
Available in 1″ and 2″ deflections
Applications
Air handling units
Air conditioners
Engine gensets
Compressors
Chillers
Pumps
Condensers
Marine
