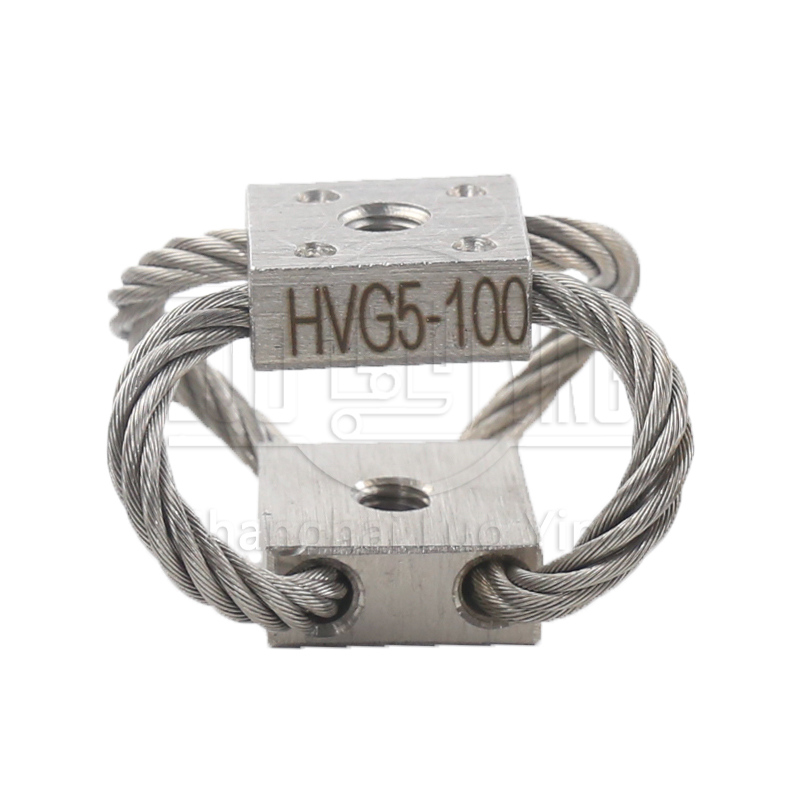

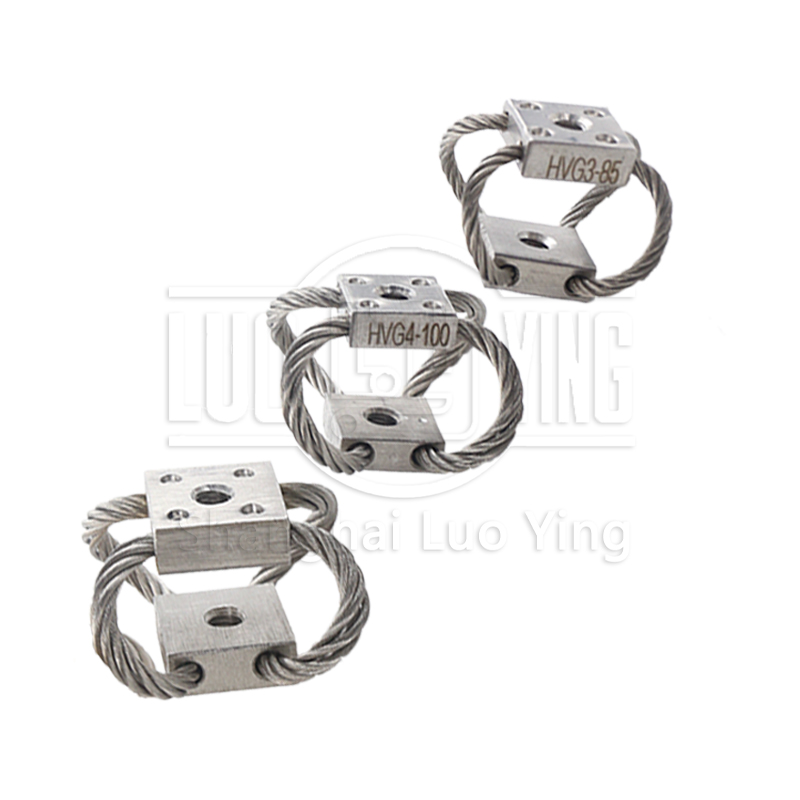

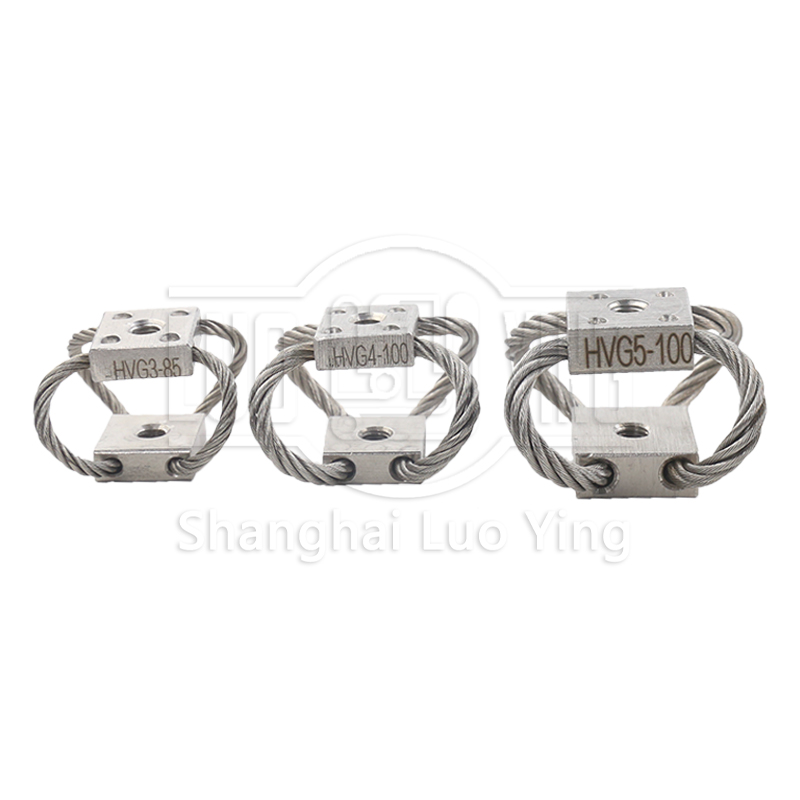

HVG wire rope isolators are special wire rope isolators that are small in size for applications in which space is limited. These wire rope isolators provide the same vibration and shock isolation capabilities as normal wire rope mounts just in a smaller size. Our compact wire rope mounts are made of high quality stainless steel braided cable threaded through aluminum alloy retaining bars, crimped and mounted for maximum shock and vibration isolation. These low profile vibration isolators provide corrosion-resistance properties as well as maintenance free operation and easy installation in addition to powerful vibration and shock damping. They are also unaffected by harsh environmental conditions and temperatures, oils, abrasives, mycosis, humidity, ozone, grease, chemicals, nuclear radiation, ozone, dust and erosion of organic solvent.

   The maximum dynamic displacement is over 70 percent of the space the mount takes up, the dynamic stiffness decreases when the displacement increases. All dimensions listed below are in metric (mm). The material used in retainer bars is 6061-T6 Aluminum Alloy, the wire ropes are 304 stainless steel, and the inserts (if available) are also 304 stainless steel. The operating temperature range for these isolators is from -100°C to +250°C. Standard product retainer bars are hard anodized and mounting holes are metric. Specials are also available upon request.
