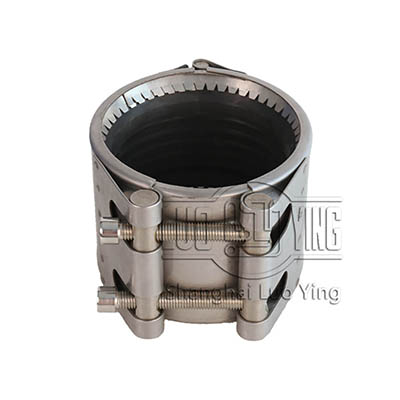

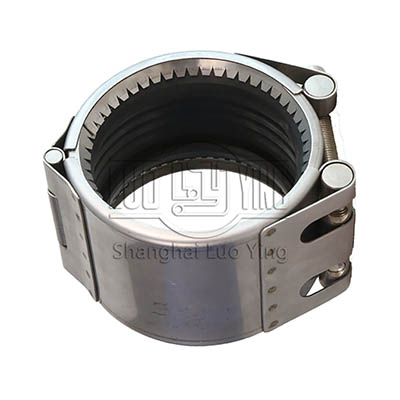

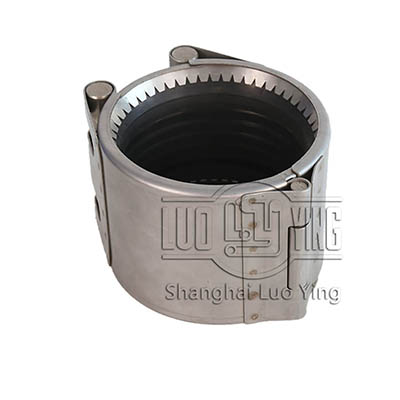

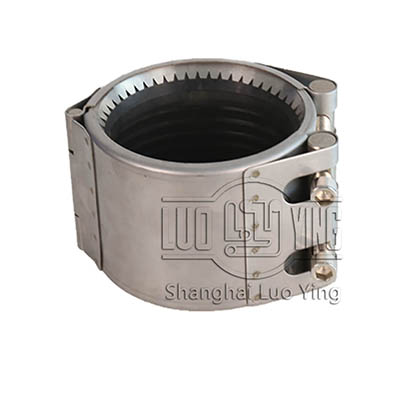

Single tooth ring repair clamps
The use of high quality Stainless Steel and Nitrile Rubber gaskets permits use of the product in a range of applications from reticulated water and sewerage to industrial use. A Repair Clamp’s variable OD Range enables a single clamp to adapt to any pipe OD within that variable range. This dramatically reduces the stocking requirement to cater for each individual pipe type and size.
- [Name]:Single tooth ring repair clamps
- [PN]:0.8-2.5MPa
- [Gasket]:EPDM , neoprene rubber, NBR, Viton, etc.
- [Casing]: Stainless Steel (301 , 304 and 316L available)
- [Specification]:Up to DN 500
Description
The use of high quality Stainless Steel and Nitrile Rubber gaskets permits use of the product in a range of applications from reticulated water and sewerage to industrial use. A Repair Clamp’s variable OD Range enables a single clamp to adapt to any pipe OD within that variable range. This dramatically reduces the stocking requirement to cater for each individual pipe type and size.
Features
Manufactured from grade 316 stainless steel for superior corrosion protection
The direct transmission of pressures onto the gasket generates the seal’s tightness, making use of the internal pressure. The gasket is not fixed onto the casing, therefore the clamp allows independent pipe movements.
Clamps available in different lengths and diameters
Suitable for under pressure and pressureless repairs
No sharp corners or edges
No loose parts that can get lost during assembly
Extremely lightweight, therefore easy to handle
Specification
Model |
Diameter | Pipe OD (mm) | Length | Tube pitch | Pressure | Preload | ||
Ordinary | Lengthening | Ordinary | Lengthening | |||||
| 25 | 34 | 33-35 | 60 | 100 | 5 | 5 | 2.5 | 50-80 |
| 32 | 42 | 42-44 | 60 | 100 | 5 | 10 | 2.5 | 50-100 |
| 40 | 48.6 | 47-49 | 60 | 100 | 5 | 10 | 2.5 | 50-100 |
| 50 | 60 | 59-62 | 80 | 140 | 8 | 15 | 2.0 | 100-150 |
| 65 | 76 | 75-78 | 80 | 140 | 10 | 25 | 2.0 | 100-150 |
| 80 | 89 | 88-92 | 100 | 205 | 10 | 25 | 2.0 | 150-200 |
| 100 | 114 | 108-116 | 100 | 205 | 10 | 25 | 1.6 | 150-200 |
| 125 | 140 | 137-142 | 110 | 205 | 10 | 30 | 1.6 | 250-300 |
| 150 | 159 | 157-162 | 110 | 205 | 10 | 30 | 1.6 | 250-300 |
| 200 | 219 | 217-221 | 140 | 255 | 10 | 30 | 1.2 | 400-800 |
| 250 | 273 | 271-275 | 140 | 255 | 10 | 30 | 1.2 | 400-800 |
| 300 | 325 | 323-327 | 140 | 255 | 10 | 30 | 1.0 | 400-800 |
| 350 | 377 | 375-379 | 155 | 255 | 10 | 30 | 1.0 | 800-1200 |
| 400 | 426 | 424-428 | 155 | 255 | 10 | 30 | 0.8 | 800-1200 |
| 450 | 480 | 475-482 | 155 | 255 | 10 | 30 | 0.8 | 800-1200 |
| 500 | 530 | 523-533 | 155 | 255 | 10 | 30 | 0.8 | 1200-1500 |
