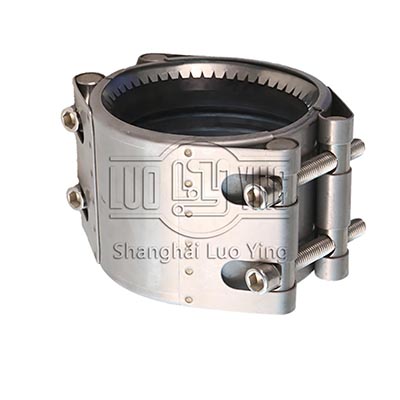

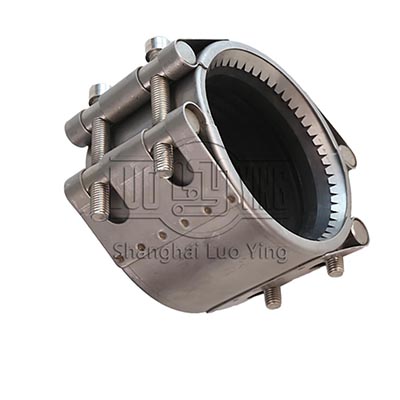

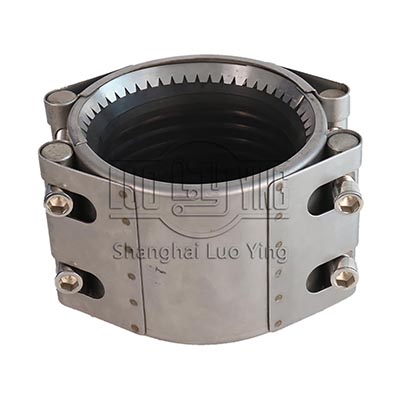

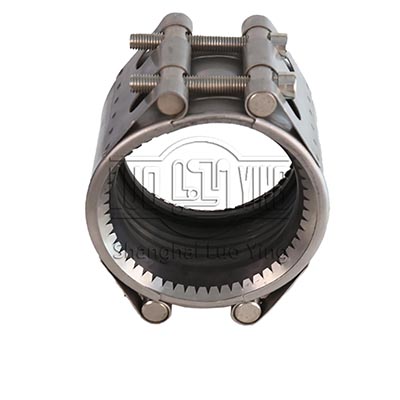

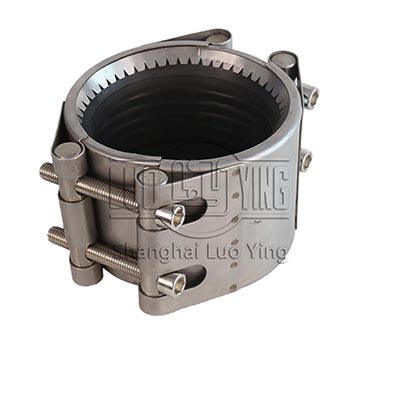

Double tooth ring repair clamps
Leaking water pipes can cause serious problems. The damaged pipes must be repaired as soon and safe as possible, but also durably to prevent waterloss. LuoYing pipes has avariety of repair clamps to fix a variety of pipes. From snap clamps to joint leak clamps and more, our repair clamps are made to repair holes or breaks in water mains.
- [Name]:Double tooth ring repair clamps
- [PN]:0.8-2.5MPa
- [Gasket]:EPDM , neoprene rubber, NBR, Viton, etc.
- [Casing]:Stainless Steel (301 , 304 and 316L available)
- [Specification]:Up to DN 500
Description
Leaking water pipes can cause serious problems. The damaged pipes must be repaired as soon and safe as possible, but also durably to prevent waterloss. LuoYing pipes has avariety of repair clamps to fix a variety of pipes. From snap clamps to joint leak clamps and more, our repair clamps are made to repair holes or breaks in water mains.
Can be used as a repair or for connecting of steel, ductile iron, PVC, HDPE and FRP pipes. Suitable for water, sewer, gas, and hydrocarbons.
Features
Manufactured from grade 316 stainless steel for superior corrosion protection
Clamps available in different lengths and diameters
Clamp is completely pickled and passivated to restore corrosion resistance
Extremely lightweight, therefore easy to handle
No sharp corners or edges
Suitable for under pressure and pressureless repairs
Specification
Model |
Diameter | Pipe OD (mm) | Length | Tube pitch | Pressure | Preload | ||
Ordinary | Lengthening | Ordinary | Lengthening | |||||
| 25 | 34 | 33-35 | 60 | 100 | 5 | 5 | 2.5 | 50-80 |
| 32 | 42 | 42-44 | 60 | 100 | 5 | 10 | 2.5 | 50-100 |
| 40 | 48.6 | 47-49 | 60 | 100 | 5 | 10 | 2.5 | 50-100 |
| 50 | 60 | 59-62 | 80 | 140 | 8 | 15 | 2.0 | 100-150 |
| 65 | 76 | 75-78 | 80 | 140 | 10 | 25 | 2.0 | 100-150 |
| 80 | 89 | 88-92 | 100 | 205 | 10 | 25 | 2.0 | 150-200 |
| 100 | 114 | 108-116 | 100 | 205 | 10 | 25 | 1.6 | 150-200 |
| 125 | 140 | 137-142 | 110 | 205 | 10 | 30 | 1.6 | 250-300 |
| 150 | 159 | 157-162 | 110 | 205 | 10 | 30 | 1.6 | 250-300 |
| 200 | 219 | 217-221 | 140 | 255 | 10 | 30 | 1.2 | 400-800 |
| 250 | 273 | 271-275 | 140 | 255 | 10 | 30 | 1.2 | 400-800 |
| 300 | 325 | 323-327 | 140 | 255 | 10 | 30 | 1.0 | 400-800 |
| 350 | 377 | 375-379 | 155 | 255 | 10 | 30 | 1.0 | 800-1200 |
| 400 | 426 | 424-428 | 155 | 255 | 10 | 30 | 0.8 | 800-1200 |
| 450 | 480 | 475-482 | 155 | 255 | 10 | 30 | 0.8 | 800-1200 |
| 500 | 530 | 526-533 | 155 | 255 | 10 | 30 | 0.8 | 1200-1500 |
