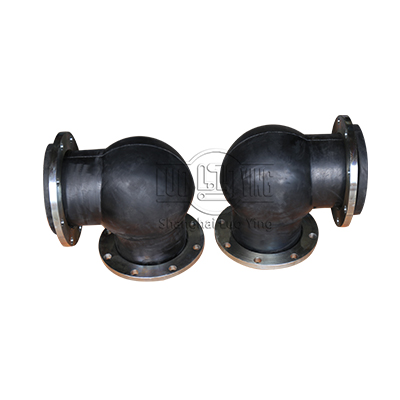

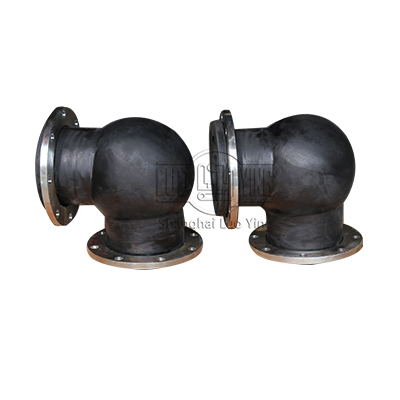

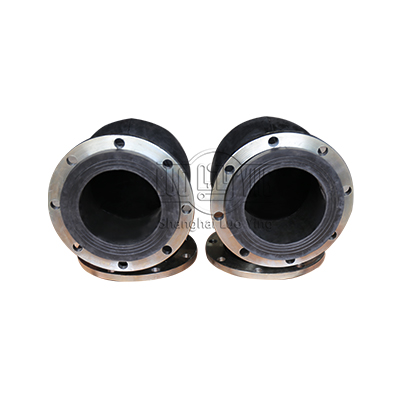

Flexible rubber joint is also called shock absorber,pipe shock absorber,shock proof box and soft joint ,and so on. It is a pipe joint of high-flexibility,high-gas tightness,resistance to medium and climate.It has such functions as following.
Flexible rubber joint is also called shock absorber,pipe shock absorber,shock proof box and soft joint ,and so on. It is a pipe joint of high-flexibility,high-gas tightness,resistance to medium and climate.It has such functions as following:
1.Small volume,small weight,good flexibility,easy installation and maitenance.
2.It can make horizontal,axial and angular displacement when being installed.It cannot be restricted by the obstruction of pipe and the non-parallel of flange.
3.It can reduce noise passed through structure when it works and has strong shock absorption.
4.Our company personally develops inner non-seal high-pressure rubber joint that can prevent effectively inner wall of rubber joint from the corrosion in the pipe of high-temperature resistance,acid and alkali resistance and oil resistance to improve the use life.
Owing to the flexible rubber elbow had good overall performance, so it is widely used in chemical, construction, water supply, drainage, oil, heavy industry, refrigeration, sanitation, plumbing, fire protection, electricity and other infrastructure projects.
Designed to reduce noise and vibration
Protects against thermal expansion over angles
Spiraled steel wire embedded adds strength.

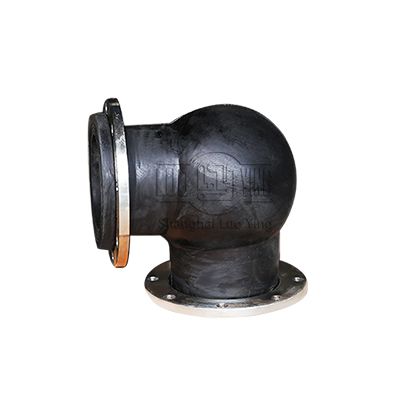

Available in 45 degree and 90 degree configurations
Flexibility prevents damage
EPDM, Neoprene, Nitrile, & Other Elastomers
Technical parameter:
Model Item | WTX-1 | WTX-2 | WTX-3 |
Working pressure Mpa(kgf/cm²) | 1.0(10) | 1.6(16) | 2.5(25) |
Explosion pressure Mpa(kgf/cm²) | 2.0(20) | 3.0(30) | 4.5(45) |
Vacuum (mm/Hg) | 53.3(400) | 86.7(650) | 100(750) |
Applicable Temperature ℃ | -15°C-+115°C(-30°C-250°C under special conditions) | ||
Applicable Medium | Air,compressed air,water,sea water,oil,acid,alkali,and so on | ||
Main Data:
| Nominal Diameter DN | Length(mm) | Allowable displacement in all directions | ||||||
| mm | Inch | X | X` | Y | Y` | Z | Z | |
| 50 | 2 | 140 | 20 | 16 | 20 | 16 | 16 | 16 |
| 65 | 2.5 | 140 | 20 | 16 | 20 | 16 | 16 | 16 |
| 80 | 3 | 150 | 20 | 16 | 20 | 16 | 16 | 16 |
| 100 | 4 | 160 | 20 | 16 | 20 | 16 | 16 | 16 |
| 125 | 5 | 180 | 20 | 16 | 20 | 16 | 16 | 16 |
| 150 | 6 | 200 | 20 | 16 | 20 | 16 | 16 | 16 |
| 200 | 8 | 230 | 20 | 16 | 20 | 16 | 16 | 16 |
| 250 | 10 | 280 | 20 | 16 | 20 | 16 | 16 | 16 |
| 300 | 12 | 305 | 20 | 16 | 20 | 16 | 16 | 16 |
Fill in the form and we will send you a detailed quotation within 24 hours. Our engineering team is ready to help you find the right solution.
