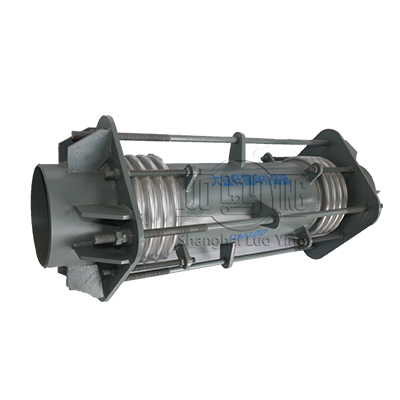

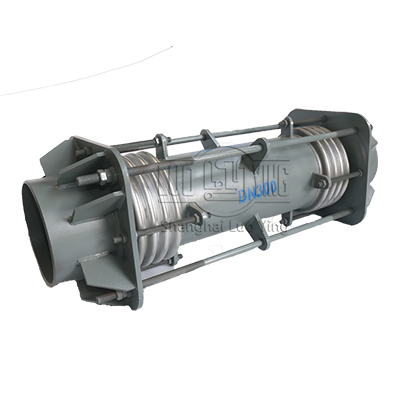

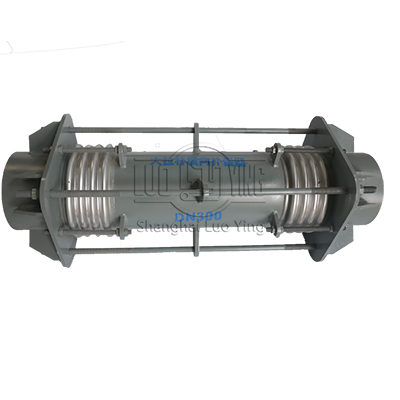

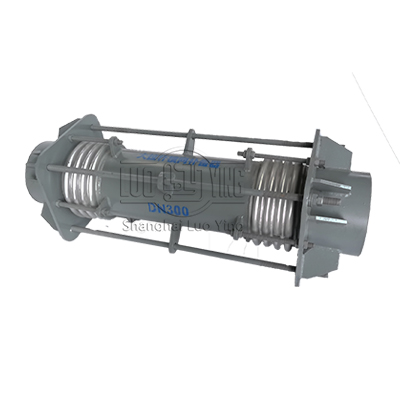

JDH Large Rod Bellows Compensator
Thermal movements would generate in any rigid pipe systems because of temperature changing. Due to its annular corrugations, the Style LD-MC Stainless Steel Flexible Connector allows for axial compression or axial extension, lateral deflection as well as
- [Name]: JDH Large Rod Bellows Compensator
- [PN]: 0.6-2.5Mpa
- [Medium]: Air, water, seawater, oil, slurry, weak acid, alkali, etc.
- [Material]: SS304, 316, Q235 etc
- [Specification]: JDH model
Description
Large rod bellow compensator adopt the technique of multi-layer, one time hydraulic molding, lateral and different direction displacement.
1. Directional Movement Absorbing
Thermal movements would generate in any rigid pipe systems because of temperature changing. Due to its annular corrugations, the JDH Large Rod Bellows Compensator allows for axial compression or axial extension, lateral deflection as well as angular and torsional movements.
2. Vibration, Noise and Shock Reducing
JDH Large Rod Bellows Compensator effectively dampens and insulates downstream piping against the transmission of noise and vibration generated by mechanical equipment. Noise and vibrations caused by equipment can cause stress in pipe, pipe guides, anchors and other equipment downstream. The JDH Large Rod Bellows Compensators will help relieve noise and vibration occurrences in a pipe system and increase the service life of the system.
Features
Large rod bellow compensator adopt the technique of multi-layer, one time hydraulic molding, can compensate axial, angular, lateral and different direction displacement.
Large rod horizontal bellow compensator can compensate lateral displacement and small angular displacement. Composed by connection tube, two bellow pipe and large rod, etc. It can absorb lateral displacement in any surface. Bolt revolve around the sphere gasket, rod can bear internal pressure thrust.
Working temperature≤420℃
1. The corrugated pipe compensators are used in a wide variety of piping application to compensate for thermal expansion or contraction and to absorb equipment vibration or pipe motions.
2. We manufacture single, two-ply and multiply testable bellows in different sizes using precision forming technology.
3. They are used as an retractable elastic compensation element, has the advantages of the reliable working,good performance,compact structure.
4. Compensate axial movements
5. Durability and excellent chemical resistance.
6. Widely used to absorb termal expansion in pipe systems carring water, steam, oil and gases
7.Stainless bellows compensators or expansion joints are designed according to the client's specifications ad design conditions
Specification
DN(mm) | Waves | Pressure rating | Lateral displacement N/mm | Maximum outer diameter size | |||
Length (mm) | (mm) | ||||||
(Mpa) | 1200 | 1500 | 2000 | 2500 | |||
100 | 4+4 | 0.25 | 177/2.2 | 243/1.2 | 254/0.6 | 465/0.3 | 310 |
0.6 | 177/2.2 | 243/1.2 | 341/0.6 | 447/0.3 | 310 | ||
1 | 163/2.2 | 243/1.2 | 325/0.6 | 427/0.3 | 310 | ||
1.6 | Apr/91 | 127/2 | 187/1 | 247/0.6 | 310 | ||
2.5 | Aug/94 | 132/5 | 194/2 | 256/1 | 310 | ||
125 | 4+4 | 0.25 | 181/2.8 | 251/1.5 | 369/0.7 | 487/0.4 | 360 |
0.6 | 172/2.8 | 239/1.5 | 351/0.7 | 463/0.4 | 360 | ||
1 | 161/2.8 | 224/1.5 | 330/0.7 | 435/0.4 | 360 | ||
1.6 | Nov/99 | 140/6 | 209/3 | 277/2 | 360 | ||
2.5 | Nov/94 | 113/6 | 197/3 | 262/2 | 360 | ||
150 | 4+4 | 0.25 | 199/6 | 278/3.2 | 410/1.6 | 542/1.0 | 410 |
0.6 | 186/6 | 259/3.2 | 382/1.6 | 506/1.0 | 410 | ||
1 | 122/10 | 170/6 | 251/3 | 332/2 | 410 | ||
1.6 | 108/12 | 153/6 | 230/3 | 307/2 | 410 | ||
2.5 | 82/22 | 117/12 | 176/5 | 324/3 | 410 | ||
200 | 4+4 | 0.25 | 155/9.4 | 220/4.9 | 327/2.25 | 435/1.4 | 480 |
0.6 | 138/9.4 | 196/4.9 | 291/2.25 | 388/1.0 | 480 | ||
1 | 101/20 | 143/11 | 213/5 | 283/3 | 480 | ||
1.6 | 75/42 | 108/21 | 164/10 | 220/6 | 480 | ||
2.5 | 59/69 | 86/35 | 130/16 | 176/9 | 480 | ||
250 | 4+4 | 0.25 | 164/10.2 | 239/5.1 | 367/2.4 | 494/1.5 | 580 |
0.6 | 128/21 | 188/10 | 287/5 | 387/3 | 580 | ||
1 | 109/35 | 159/18 | 243/8 | 328/5 | 580 | ||
1.6 | 76/68 | 116/33 | 182/14 | 249/8 | 580 | ||
2.5 | 64/122 | 98/58 | 154/25 | 210/14 | 580 | ||
