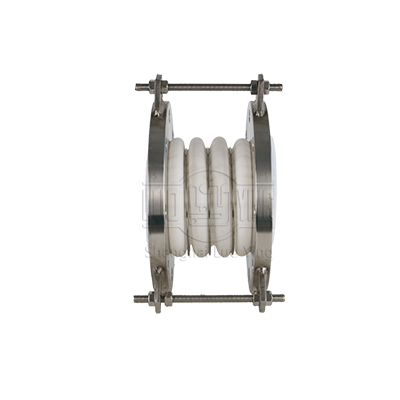

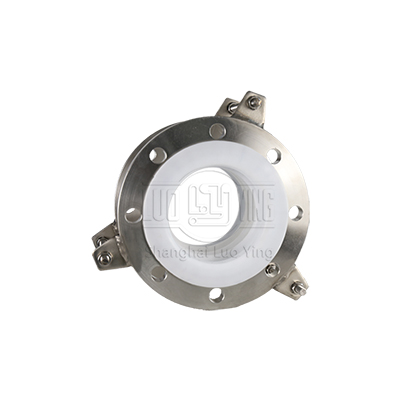

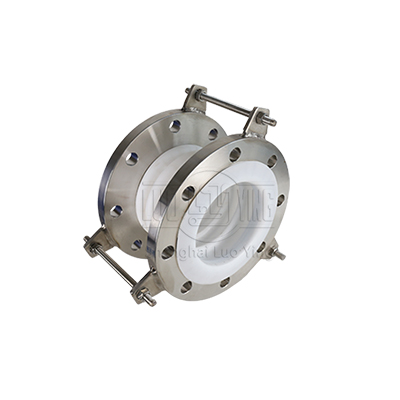

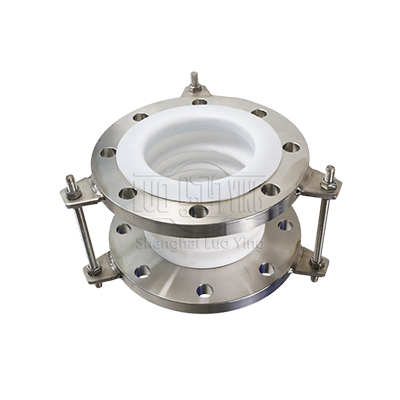

PTFE lined corrugated expansion joint
Metal bellows expansion joints (also called compensators) are compensating elements for thermal expansion and relative movement in pipelines, containers and machines. They consist of one or more metal bellows, connectors at both ends, and tie rods that de
- [Name]: PTFE lined corrugated expansion joint
- [PN]: 0.6-2.5Mpa
- [Medium]: Air, water, seawater, oil, slurry, weak acid, alkali, etc
- [Material]: SS304, 316, Q235 etc.
- [Specification]: JWY model
Description
PTFE Expansion Joints also offer low spring rates resulting in low reaction forces on adjacent piping, nozzles, structures, and equipment. Expansion Joints are well suited for use on non-metallic piping systems such as FRP, glass-lined, PTFE-lined, Kynar, and other corrosion-resistant piping materials.
This expansion joint combines the properties of metal and PTFE into the most advanced expansion joint available for highly corrosive piping systems. Normal design temperatures are from -300F to +400F, and they will retain their pressure carrying capacity up to 1,200F in an upset condition, sufficient time for system shut-down and replacement.
Features
Characteristics:
1.Except for close to fixed bracket, also need three guide bracket between each fixed bracket.
2.Can be used in overhead pipeline, underground laying pipeline, also can be used in direct buries laying, compensator should equipped with inspection well or darkroom.
3.Used in axial compensation, has large compensation and strong self-steering and bending resistance ability.
4. Economy: Compared with the systems of mechanic stretching and material damping, it has the advantages of little space covering, light weight, easy assembly and disassembly, labor saving and low cost. Its smooth inner wall can reduce flow resistance. It has good water tightness, so there is no need of gasket during the installation. It has wide application, large temperature-resistance scope and long working life
Specification
| ND(mm) | Waves | Axial compensation(mm)/ stiffness N/mm | Effective areas(cm²) | Connection tube size | Product length(mm) | |||
| 0.6Mpa | 1.0Mpa | 1.6Mpa | 2.5Mpa | |||||
| 100 | 6 | 34/277 | 33/417 | 33/417 | 32/817 | 121 | ф108×4 | 410 |
| 10 | 56/166 | 56/250 | 54/250 | 50/409 | 492 | |||
| 20 | 112/83 | 112/125 | 108/125 | 100/205 | 712 | |||
| 125 | 5 | 36/272 | 36/408 | 35/408 | 33/801 | 180 | ф133×4 | 410 |
| 9 | 65/151 | 65/227 | 63/227 | 60/401 | 412 | |||
| 18 | 130/76 | 130/114 | 126/114 | 120/201 | 711 | |||
| 150 | 5 | 49/200 | 48/300 | 45/456 | 44/845 | 257 | ф159×4.5 | 433 |
| 8 | 78/125 | 77/188 | 71/286 | 65/423 | 518 | |||
| 16 | 156/63 | 154/94 | 142/143 | 130/211 | 756 | |||
| 200 | 4 | 56/193 | 56/288 | 56/480 | 55/800 | 479 | ф219×6 | 475 |
| 6 | 85/128 | 85/192 | 84/320 | 80/927 | 533 | |||
| 12 | 170/64 | 170/96 | 168/160 | 160/200 | 800 | |||
| 250 | 4 | 74/343 | 63/588 | 53/930 | 50/1856 | 769 | ф273×8 | 500 |
| 6 | 110/228 | 95/392 | 80/620 | 78/927 | 620 | |||
| 12 | 220/114 | 190/196 | 160/310 | 156/464 | 984 | |||
| 300 | 4 | 72/503 | 65/830 | 57/1253 | 54/2142 | 1105 | ф325×8 | 584 |
| 6 | 109/335 | 97/553 | 85/835 | 80/1071 | 713 | |||
| 12 | 218/168 | 194/277 | 170/418 | 160/536 | 1116 | |||
| 350 | 4 | 78/523 | 72/840 | 64/1265 | 62/2684 | 1307 | ф377×10 | 614 |
| 6 | 117/348 | 107/560 | 97/843 | 90/1342 | 759 | |||
| 12 | 234/174 | 241/218 | 194/442 | 180/671 | 1216 | |||
| 400 | 4 | 73/458 | 70/918 | 65/1373 | 63/3675 | 1611 | ф426×10 | 625 |
| 6 | 109/305 | 102/612 | 97/915 | 90/1838 | 771 | |||
| 12 | 218/153 | 204/306 | 194/458 | 180/920 | 1225 | |||
| 450 | 4 | 96/405 | 82/690 | 69/2305 | 65/4350 | 1972 | ф478×10 | 620 |
| 6 | 144/270 | 124/460 | 103/1537 | 90/2175 | 762 | |||
| 12 | 288/135 | 248/230 | 206/769 | 180/1087 | 1200 | |||
| 500 | 4 | 100/423 | 84/728 | 70/2452 | 65/4256 | 2445 | ф529×10 | 624 |
| 6 | 149/282 | 126/485 | 105/1635 | 90/2128 | 766 | |||
| 12 | 298/141 | 252/243 | 210/818 | 180/1064 | 1216 | |||
