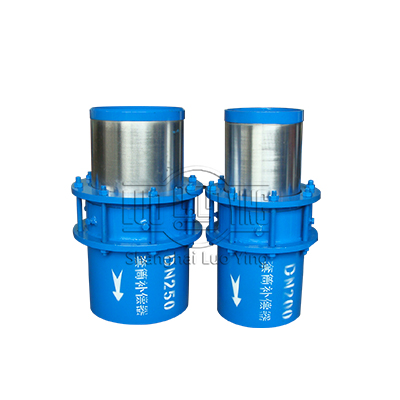

Sleeve type compensator is also called tubular expansion joints,Is the hot fluid pipeline compensator,mainly used for line pipe and auxiliary axial thermal expansion displacement after absorption compensation,is a kind of directly installed in any ...

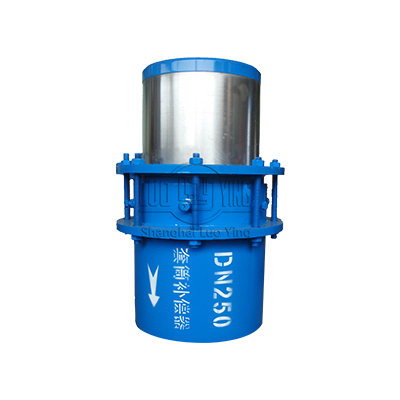

Slide Sleeve Type Expansion Joint are a very compact and easy to install product, used for absorbing the expansion and contraction movements of a pipeline system. The product has been perfectly designed and developed for utmost customer satisfaction. We are also well equipped to cater the customer's specific requirements. These Slide Sleeve Type Expansion Joint are made out of high grade materials, sourced from reliable vendors, ensuring high quality, reliability, durability and versatility. The product along with our prompt services helps us to be the preferred supplier amongst our customers.It is a highly safe structure.A large amount of expansion and contraction can be taken.
No need to lubricate.ALL SUS products can also be used for water supply.
Structural characteristic:
Nominal diameter | Expansion amoung | Outer Diameter | GSXW Model | |
Diameter Max | Installation length | |||
25 | 150 | 32 | 116 | 1250 |
32 | 150 | 28 | 124 | 1250 |
40 | 150 | 45 | 136 | 1250 |
50 | 200 | 57 | 150 | 1420 |
65 | 200 | 73 | 172 | 1420 |
70 | 200 | 76 | 178 | 1420 |
80 | 200 | 89 | 194 | 1420 |
100 | 250 | 108 | 24 | 1550 |
125 | 250 | 133 | 274 | 1580 |
150 | 250 | 159 | 310 | 1580 |
200 | 250 | 219 | 390 | 1650 |
250 | 300 | 273 | 466 | 1910 |
300 | 300 | 325 | 558 | 1910 |
350 | 300 | 377 | 628 | 1920 |
400 | 350 | 426 | 708 | 2090 |
500 | 400 | 530 | 856 | 2410 |
600 | 400 | 630 | 996 | 2420 |
700 | 400 | 720 | 134 | 2420 |
800 | 450 | 820 | 1282 | 2630 |
900 | 450 | 920 | 1415 | 2630 |
1000 | 450 | 1020 | 1560 | 2650 |
Note:When the working pressure is not 1.6MPa,the force of friction is Pc/1.6×PN
Fill in the form and we will send you a detailed quotation within 24 hours. Our engineering team is ready to help you find the right solution.
