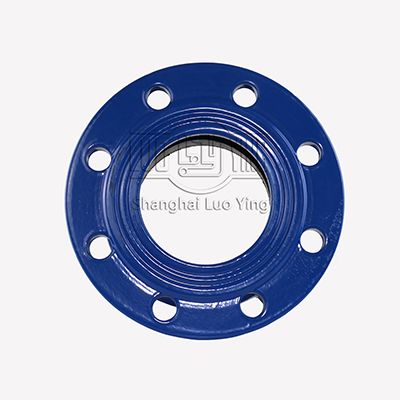

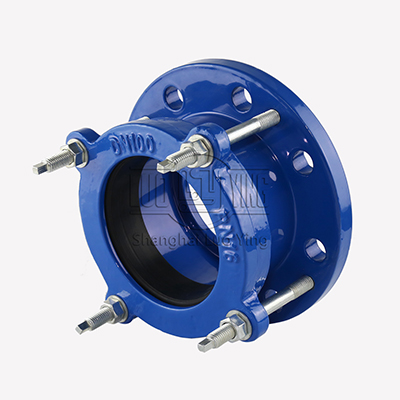

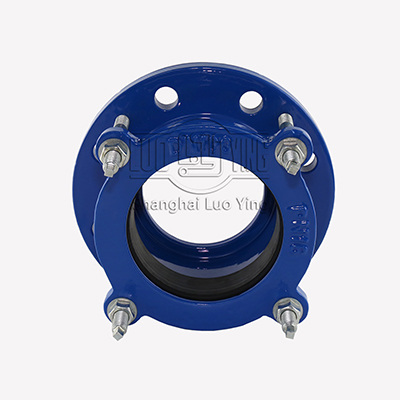

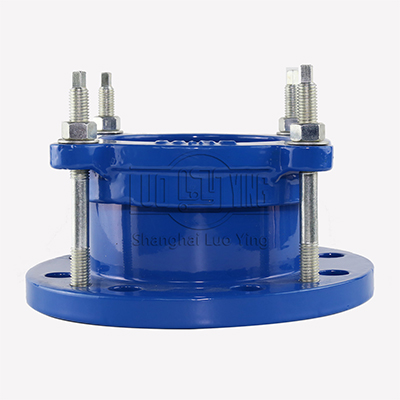

Ductile iron single range flange adapter
Universal straight fittings, stepped fittings and flange adapters for cast iron, ductile iron, steel, uPVC and asbestos cement pipes. Bolts and nuts with anti-friction coating provide long-lasting corrosion protection and allow for angular offsets of up to ±4°, so they are easy to install.
- [Name]:(AF)Ductile iron single range flange adapter
- [PN]:PN 10/16
- [Rubber gaskets]:EPDM, NBR
- [Material]:Ductile Iron
- [Bolts & nuts]:Galvanized Steel, stainless steel
- [Specification]:DN50-DN400
Description
Universal straight fittings, stepped fittings and flange adapters for cast iron, ductile iron, steel, uPVC and asbestos cement pipes. Bolts and nuts with anti-friction coating provide long-lasting corrosion protection and allow for angular offsets of up to ±4°, so they are easy to install.
Features
Capable of connecting a wide range of pipe materials and diameters; ideal for reducing stock levels.
Corrosion resistant materials suitable for drinking water and wastewater applications.
Can be installed without disassembling which makes installation faster and easier.
Captive bolt head for one spanner operation to simplify the assembly in the field.
